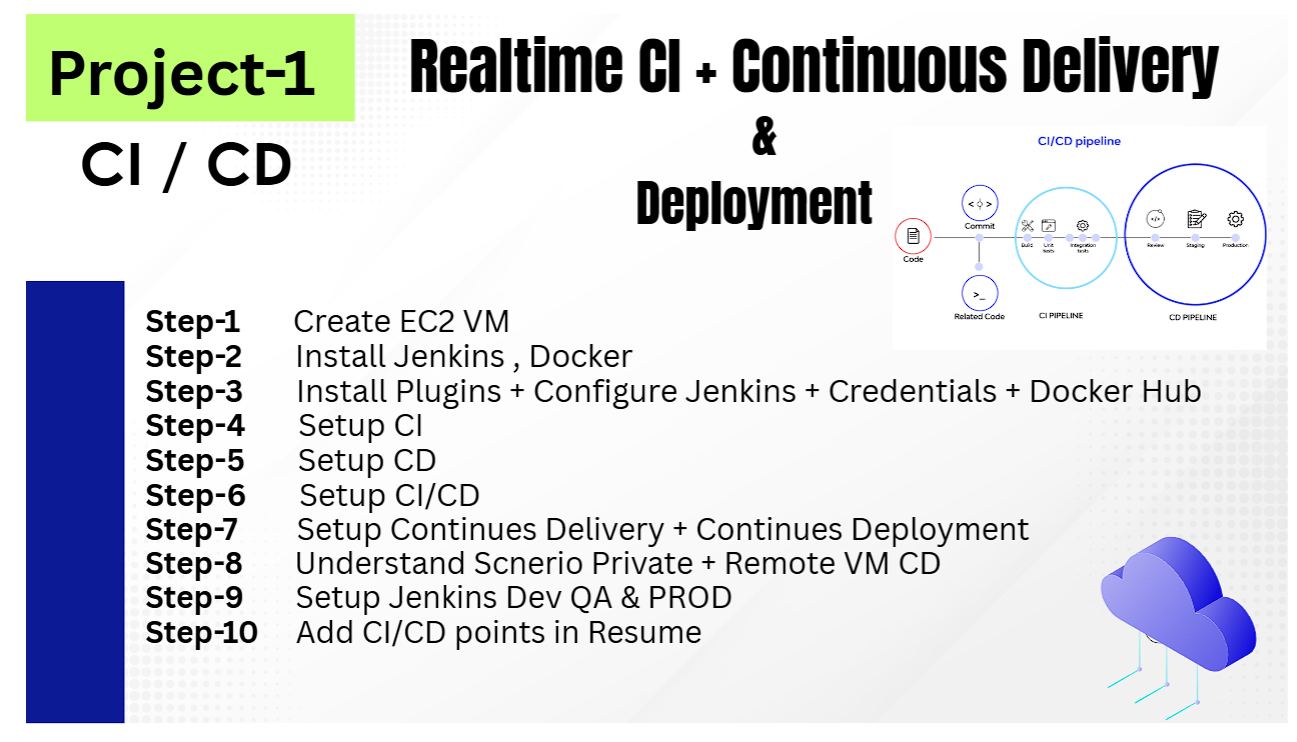

Project-1: Starbucks Web Application CI/CD Pipeline
Automated Continuous Integration & Continuous Deployment using Node.js, Jenkins, Docker, and AWS EC2

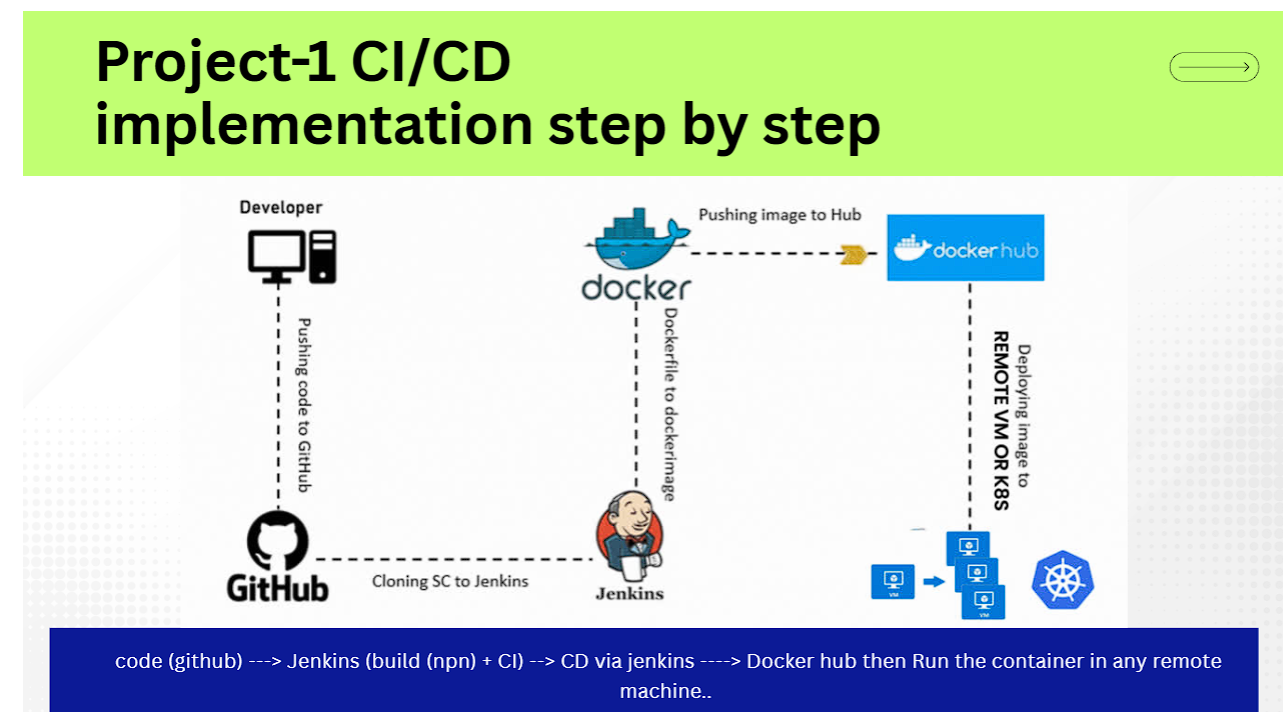

This project demonstrates a production-grade Continuous Integration (CI) and Continuous Deployment (CD) pipeline for a high-traffic Node.js application (Starbucks Clone). The workflow seamlessly integrates source control, automated docker containerization, image registry pushing, and automated target deployment.

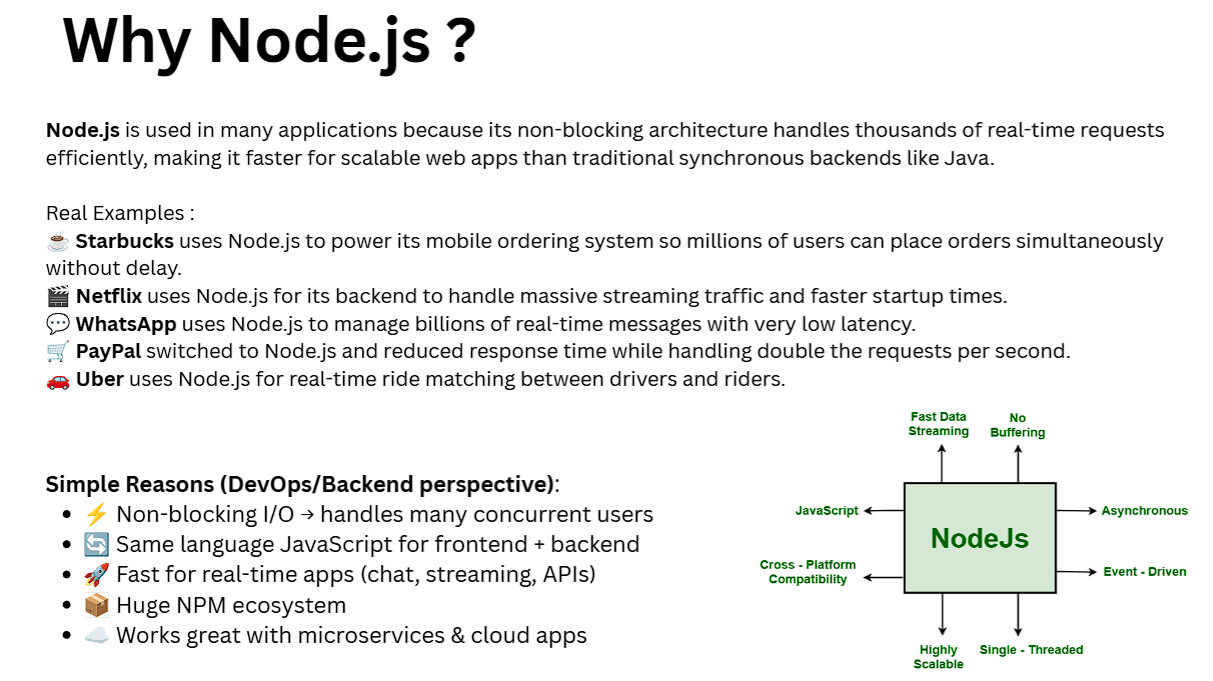

Node.js is powered by an asynchronous, non-blocking I/O event-driven model. It efficiently processes thousands of concurrent real-time requests with low overhead compared to legacy thread-per-request backends.

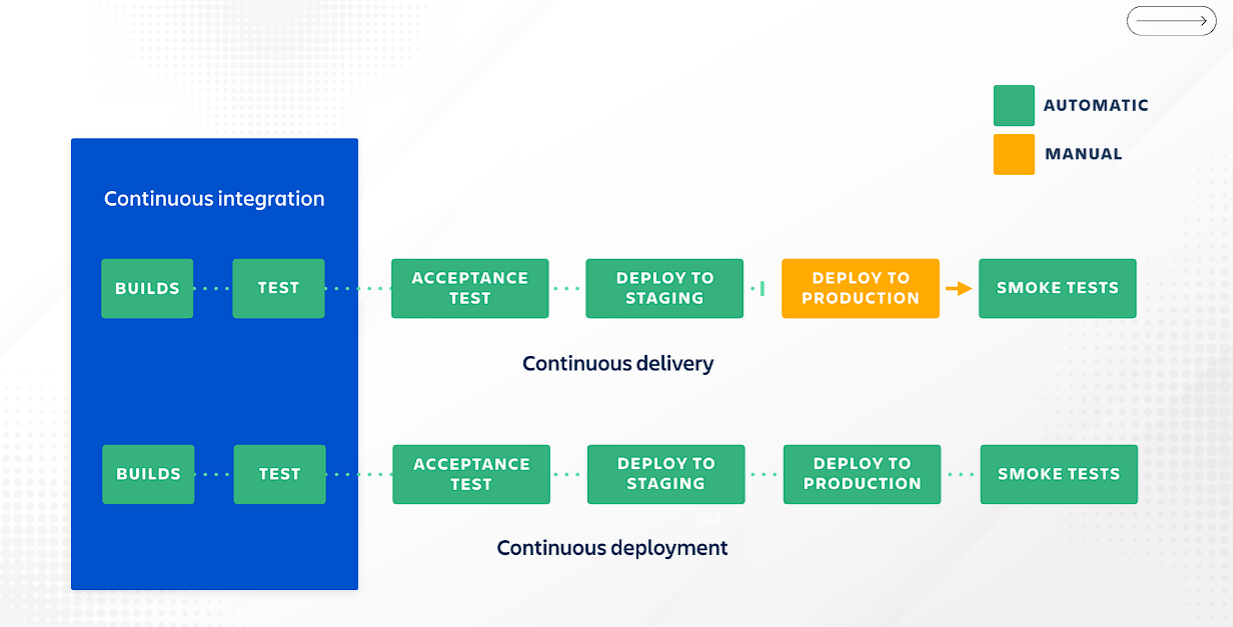

It is vital to distinguish between the three stages of modern software release automation:
Builds, tests, and deploys automatically up to the Staging environment. Deployment to Production requires a Manual Gate / Approval.
Fully automated pipeline with zero manual intervention. Passes smoke tests and deploys directly to Production automatically upon code push.
Continuous Integration : Builds ➔ Unit Tests
Continuous Delivery : Builds ➔ Unit Tests ➔ Acceptance Test ➔ Staging ➔ [MANUAL APPROVAL] ➔ Production ➔ Smoke Tests

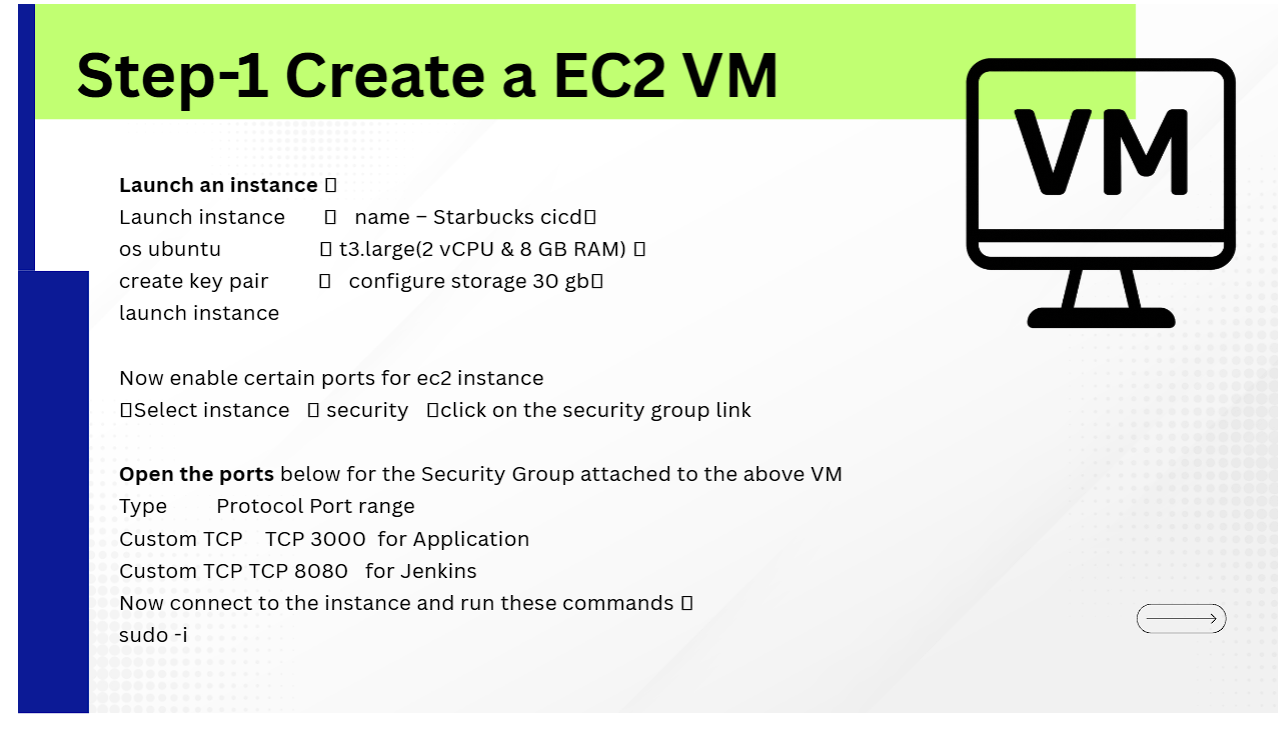

Continuous Deployment : Builds ➔ Unit Tests ➔ Acceptance Test ➔ Staging ➔ [AUTOMATED PUSH] ➔ Production ➔ Smoke TestsLaunch an AWS EC2 instance with the following specifications to run Jenkins and Docker workloads:
Starbucks cicdt3.large (2 vCPUs & 8 GB RAM)| Type | Port Range | Purpose |
|---|---|---|
| Custom TCP | 8080 |
Jenkins Web Dashboard Access |
| Custom TCP | 3000 |
Starbucks Web Application Container Port |
| SSH | 22 |
Remote Shell Management |

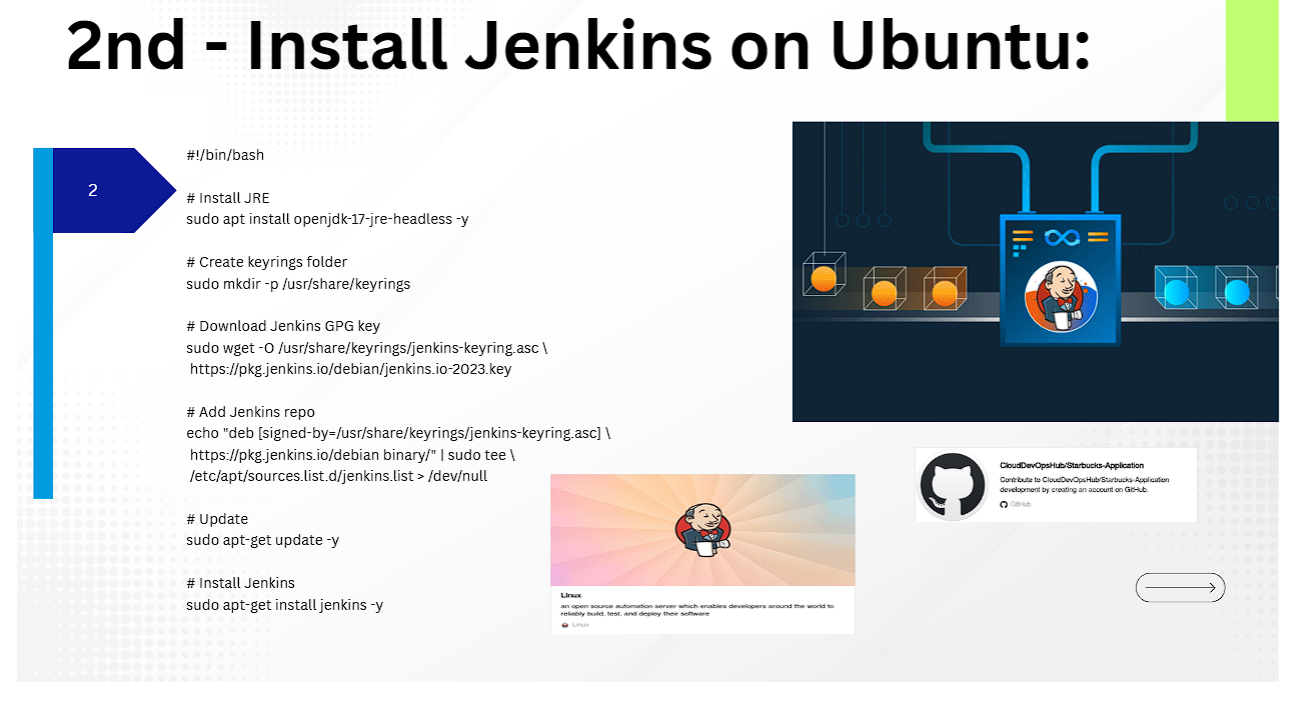

#!/bin/bash
# Install JRE 17 Headless
sudo apt update && sudo apt install openjdk-17-jre-headless -y
# Download Jenkins GPG Key & Repo
sudo mkdir -p /usr/share/keyrings
sudo wget -O /usr/share/keyrings/jenkins-keyring.asc https://pkg.jenkins.io/debian/jenkins.io-2023.key
echo "deb [signed-by=/usr/share/keyrings/jenkins-keyring.asc] https://pkg.jenkins.io/debian binary/" | sudo tee /etc/apt/sources.list.d/jenkins.list > /dev/null
# Update & Install Jenkins
sudo apt-get update -y
sudo apt-get install jenkins -y
sudo systemctl enable --now jenkins

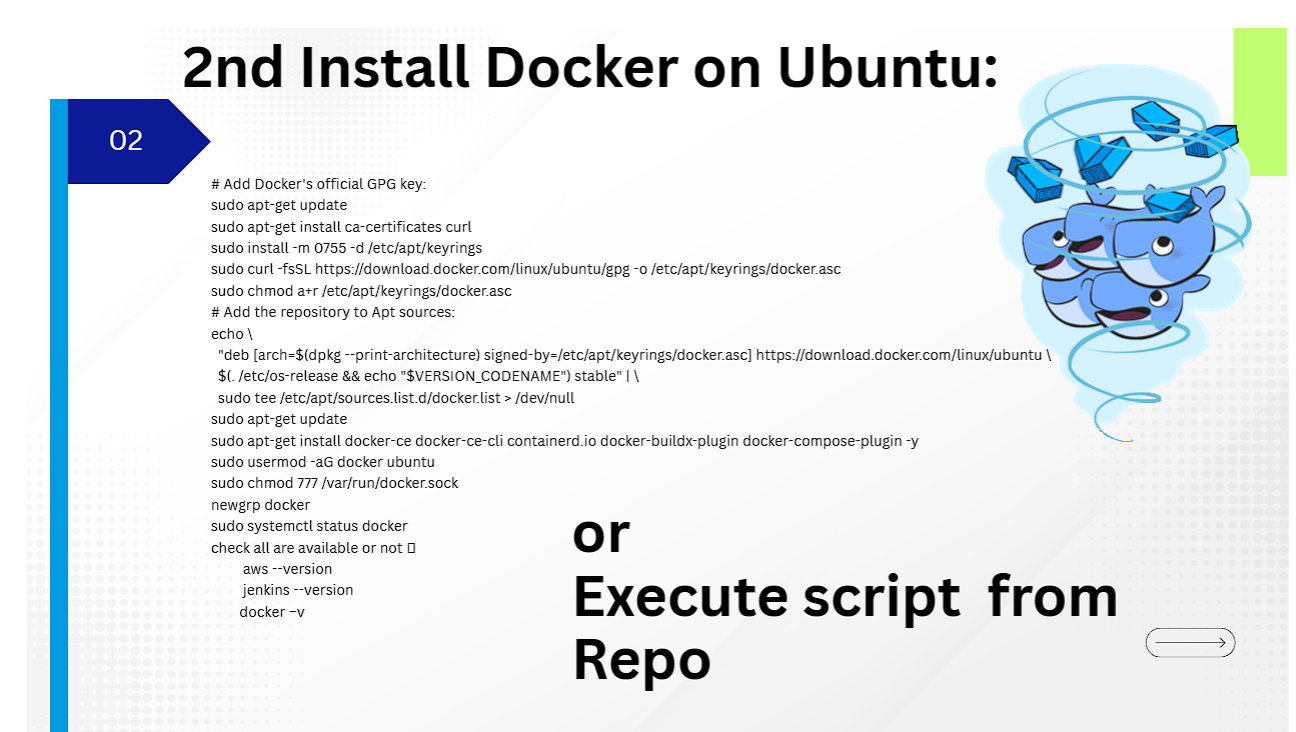

# Add Docker GPG key & Repository
sudo apt-get update
sudo apt-get install ca-certificates curl -y
sudo install -m 0755 -d /etc/apt/keyrings
sudo curl -fsSL https://download.docker.com/linux/ubuntu/gpg -o /etc/apt/keyrings/docker.asc
sudo chmod a+r /etc/apt/keyrings/docker.asc
echo "deb [arch=$(dpkg --print-architecture) signed-by=/etc/apt/keyrings/docker.asc] https://download.docker.com/linux/ubuntu $(. /etc/os-release && echo "$VERSION_CODENAME") stable" | sudo tee /etc/apt/sources.list.d/docker.list > /dev/null
# Install Docker CE & Compose
sudo apt-get update -y
sudo apt-get install docker-ce docker-ce-cli containerd.io docker-buildx-plugin docker-compose-plugin -y
# Configure User Privileges
sudo usermod -aG docker ubuntu
sudo chmod 777 /var/run/docker.sock
newgrp docker
# Verify Installation
aws --version
jenkins --version
docker -v

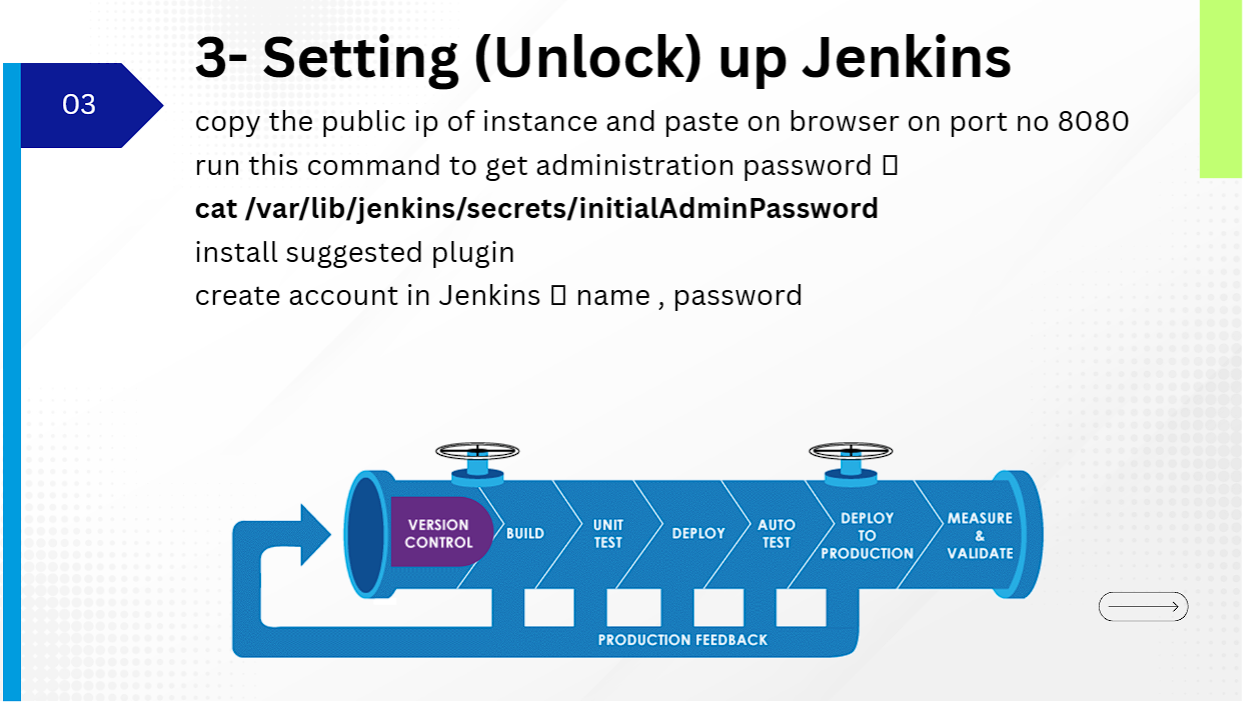

Unlock Jenkins by fetching the initial administrator secret:
cat /var/lib/jenkins/secrets/initialAdminPassword

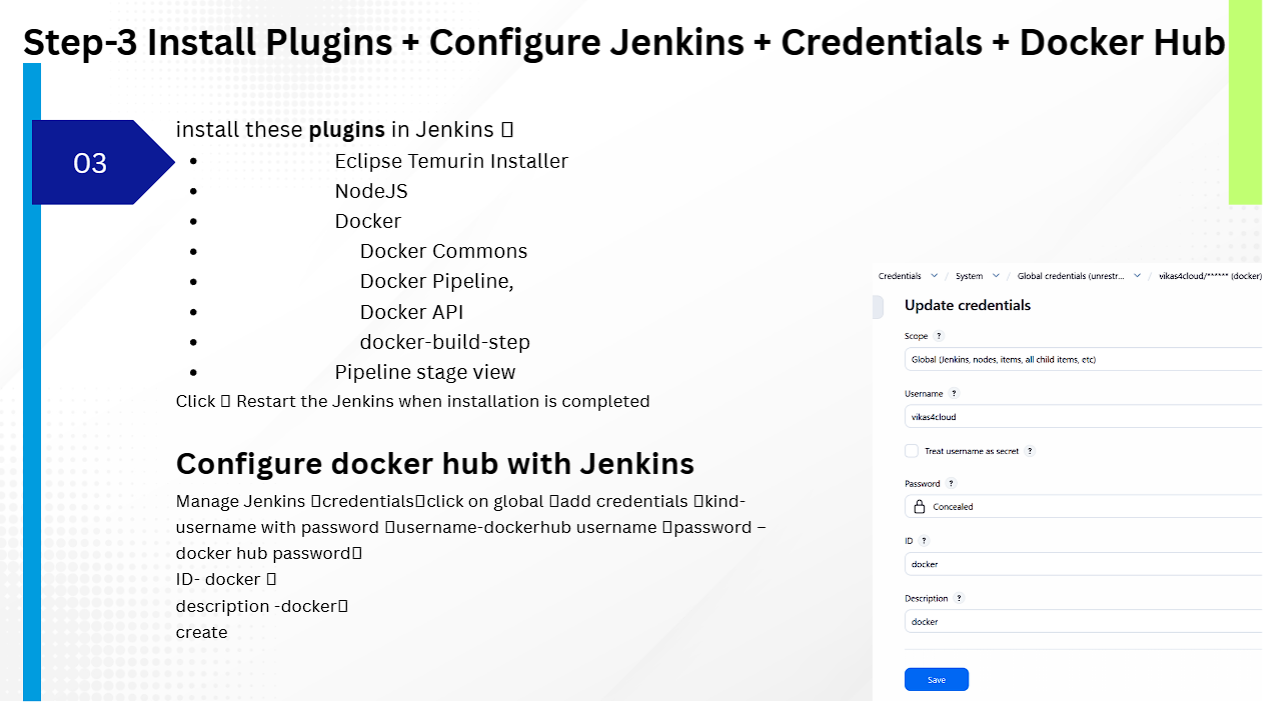

Navigate to Manage Jenkins ➔ Plugins ➔ Available Plugins and install:

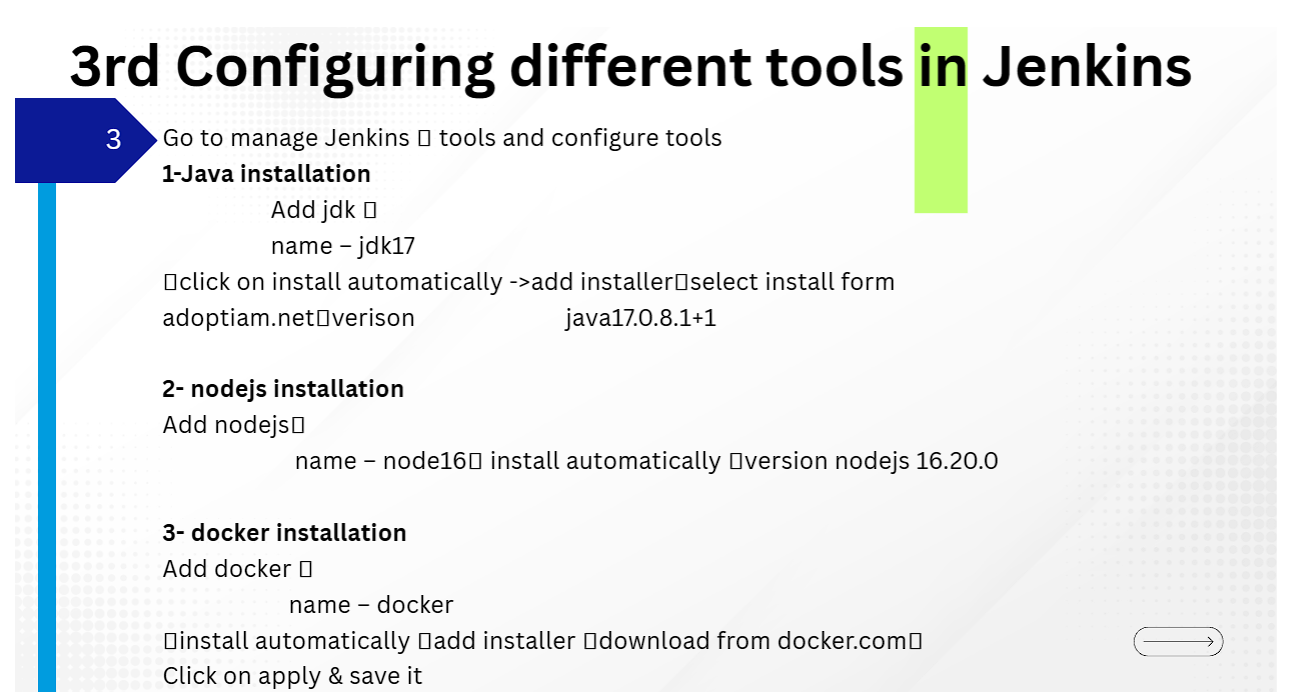

Under Manage Jenkins ➔ Tools configure the following auto-installers:

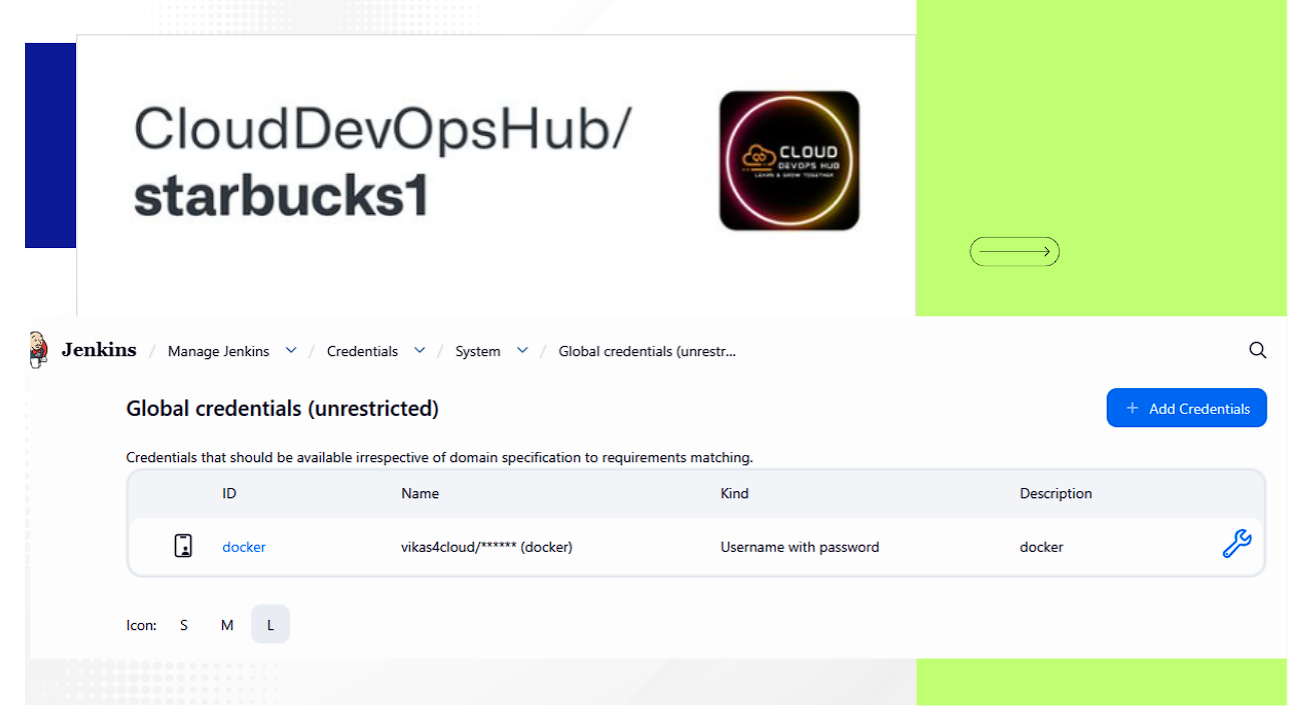

jdk17 | Install automatically from Adoptium.net (version java17.0.8.1+1).node16 | Install automatically (version nodejs 16.20.0).docker | Install automatically from docker.com.Go to Manage Jenkins ➔ Credentials ➔ System ➔ Global credentials ➔ Add Credentials:
docker

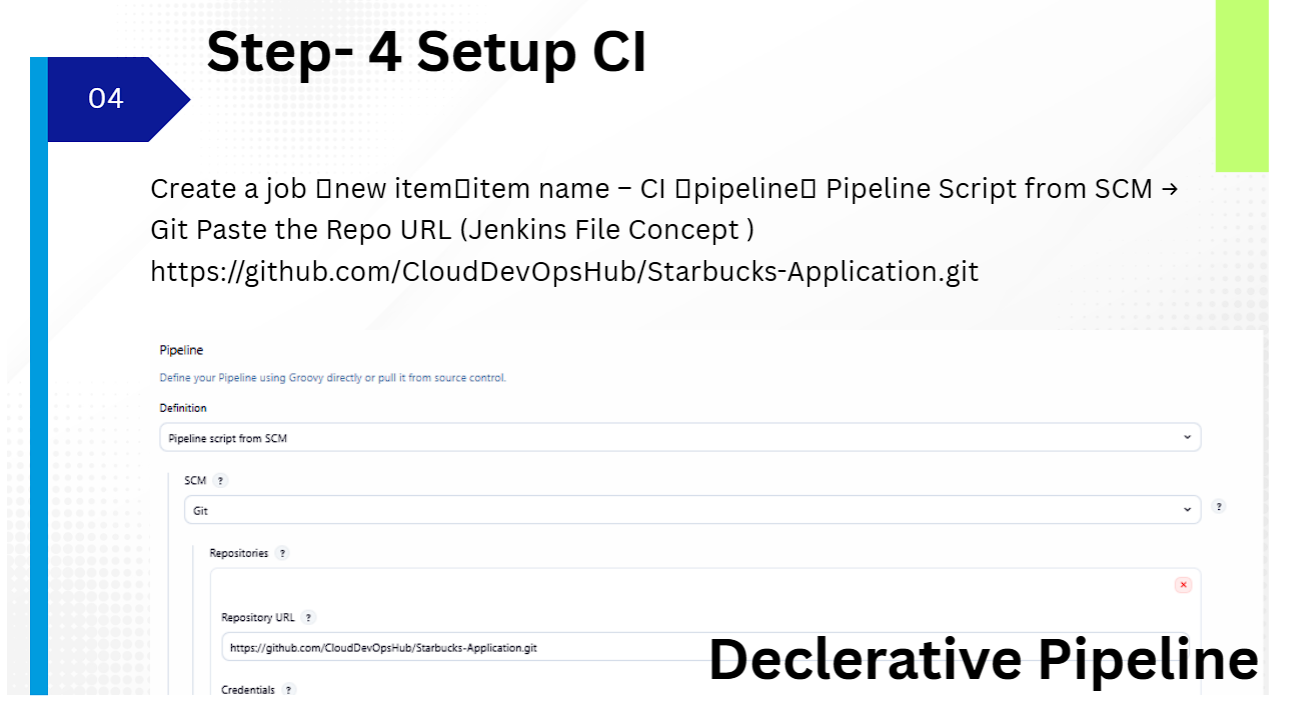

Create a Pipeline job named CI pointing to GitHub Repository: https://github.com/CloudDevOpsHub/Starbucks-Application.git using Declarative Pipeline script from SCM (Jenkinsfile).

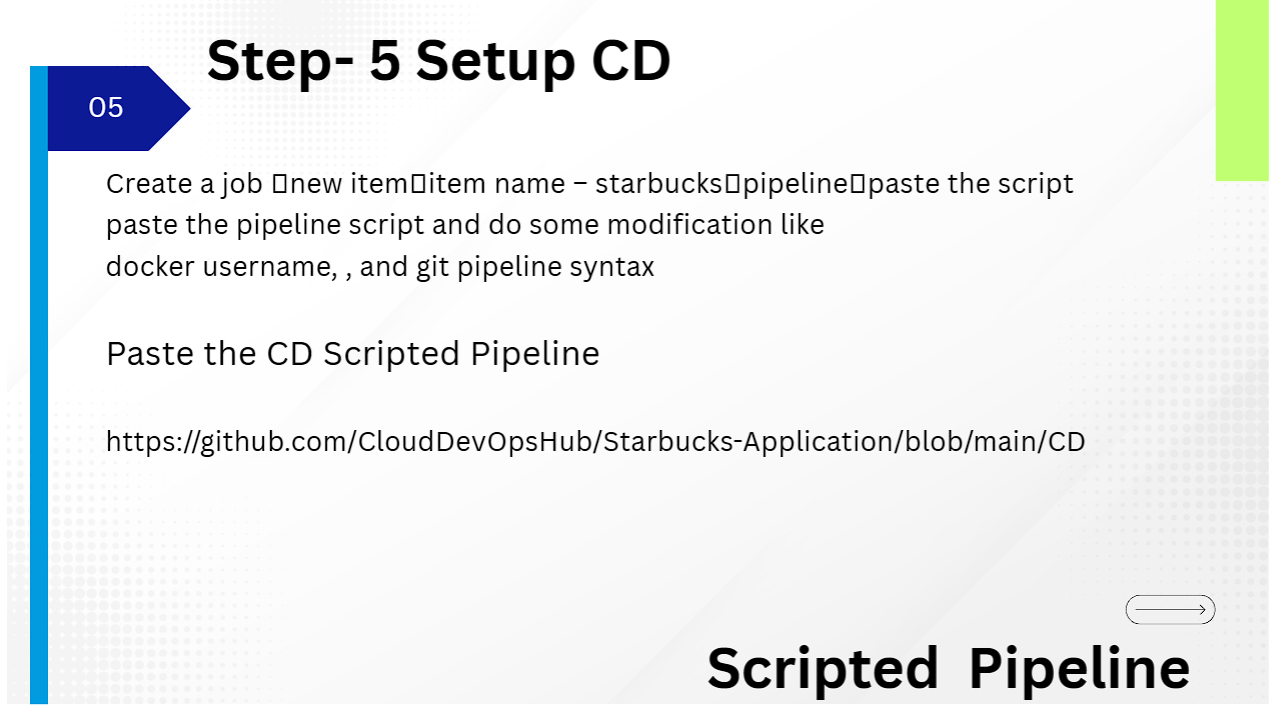

Create a Pipeline job named starbucks with Scripted Pipeline code:
node {
stage('Deploy Starbucks App') {
// Pull latest docker container image & run on target port 3000
sh '''
docker stop starbucks || true
docker rm starbucks || true
docker run -d --name starbucks -p 3000:3000 vikas4cloud/starbucks:latest
'''
}
}

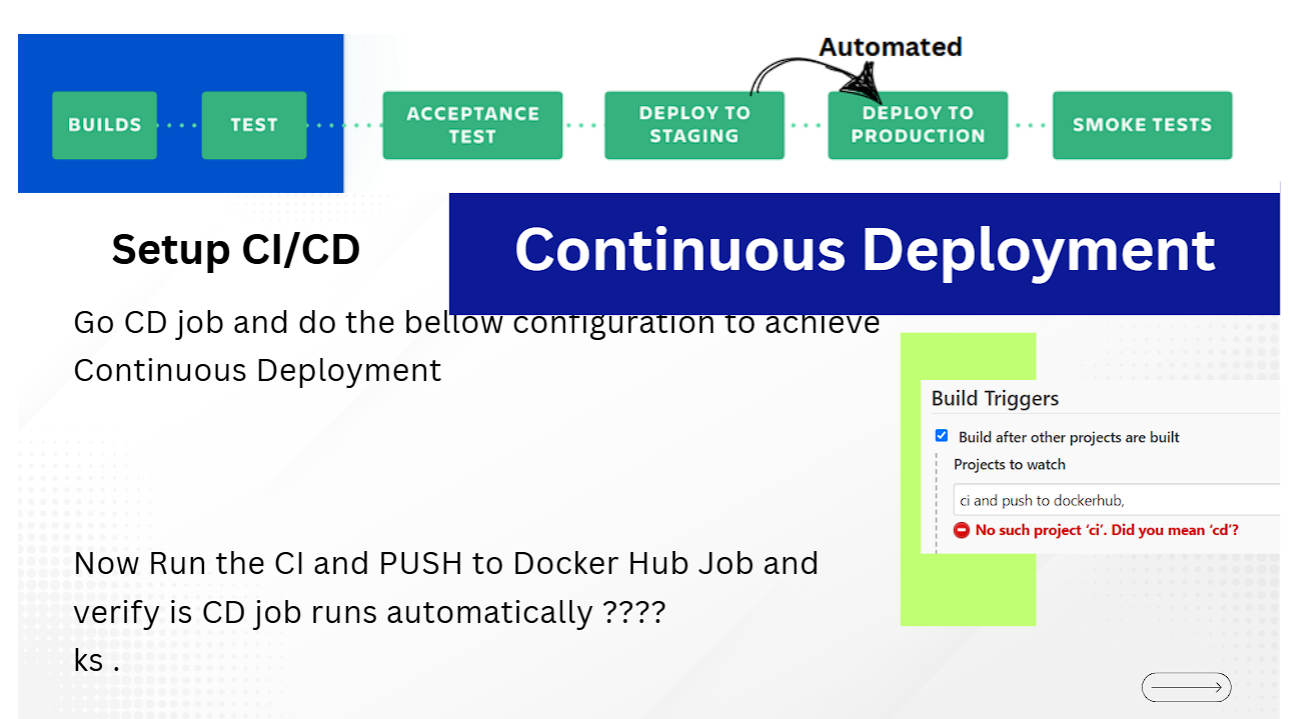

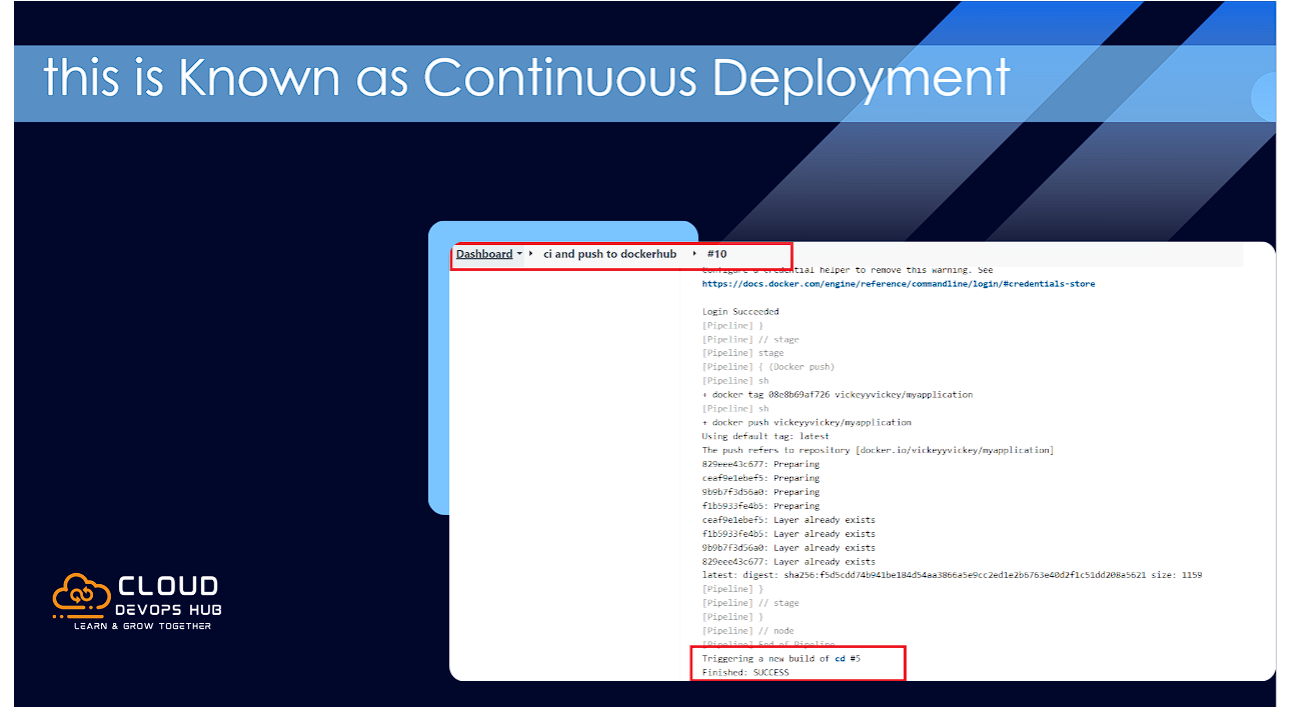

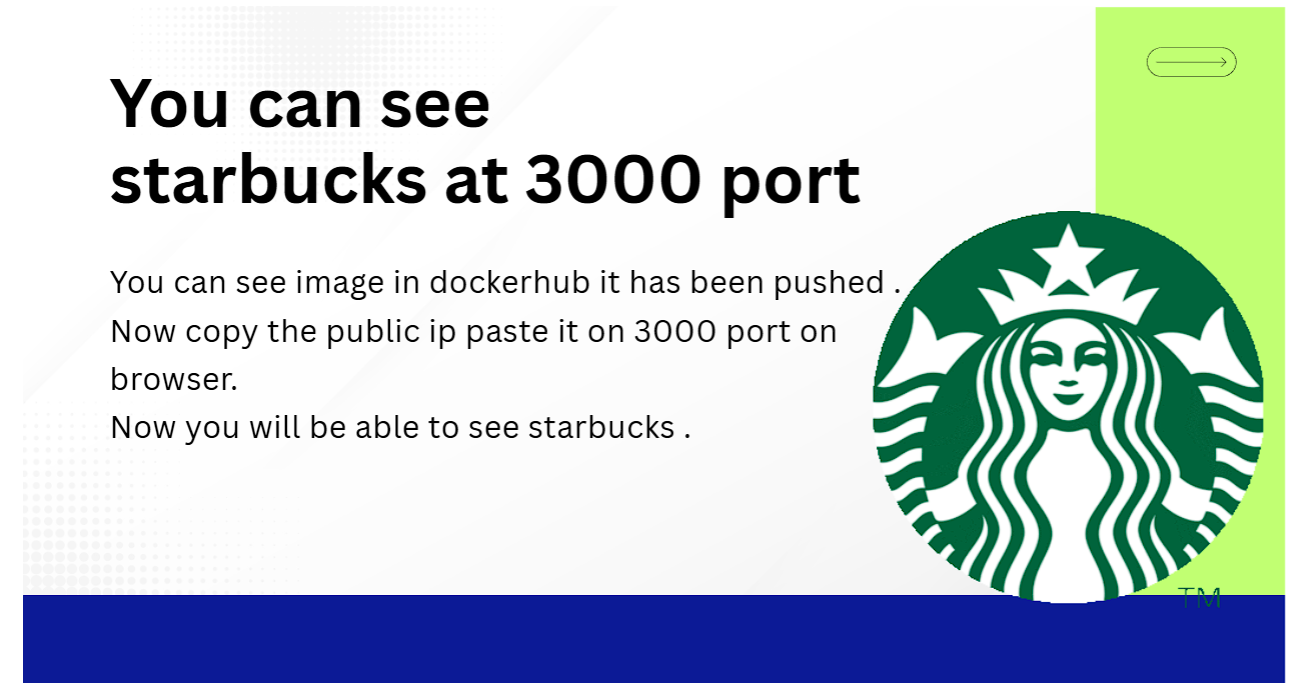

To enable automated trigger, go to the starbucks CD job configuration ➔ Build Triggers ➔ check "Build after other projects are built" ➔ Projects to watch: CI. Now, every successful CI push automatically triggers deployment!

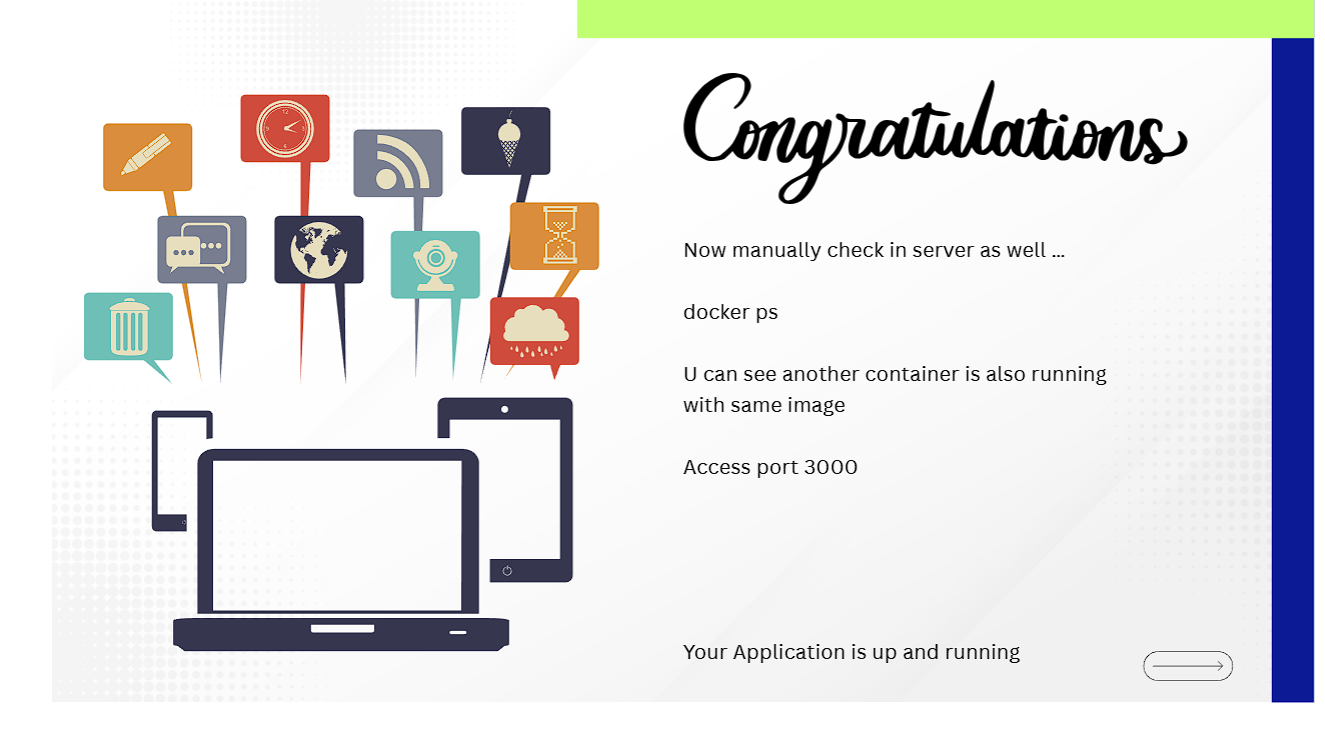

docker ps) Showing Starbucks Container Running

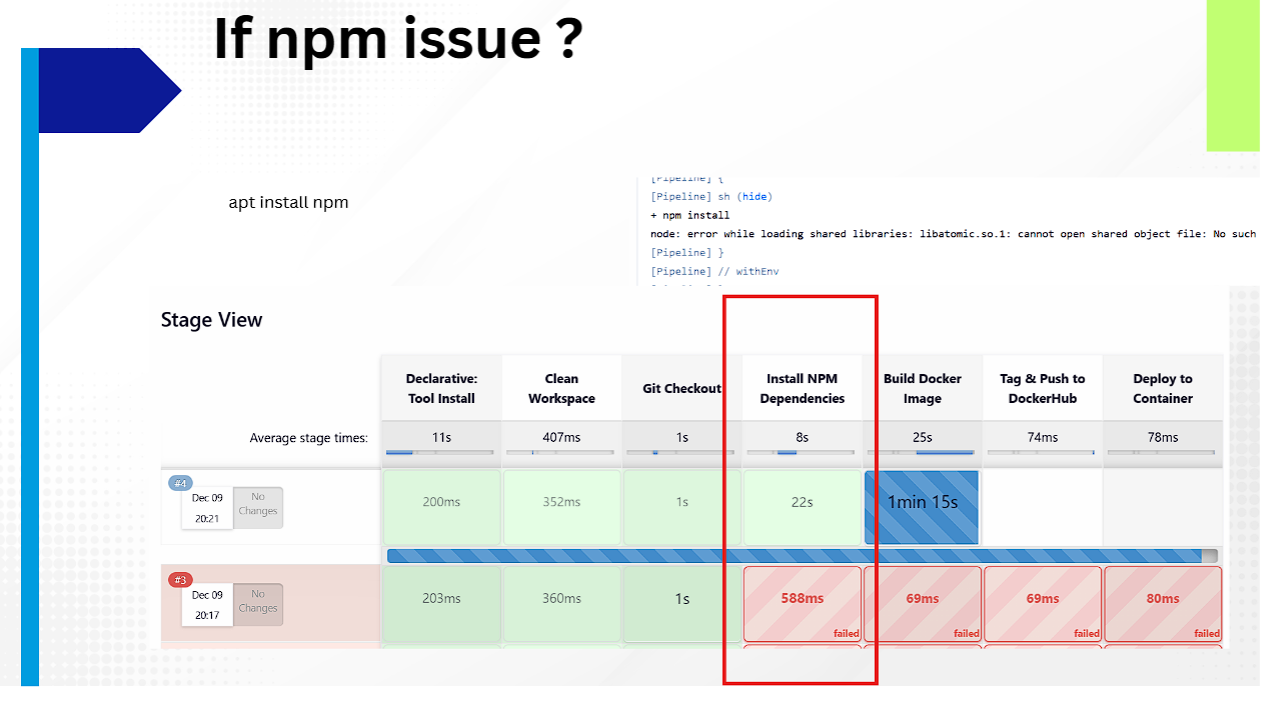

libatomic.so.1) FixSymptom: Jenkins pipeline fails during Install NPM Dependencies stage with error:
node: error while loading shared libraries: libatomic.so.1: cannot open shared object file: No such file or directory
Solution: Install npm package directly on the Ubuntu host server:
sudo apt-get install npm -y

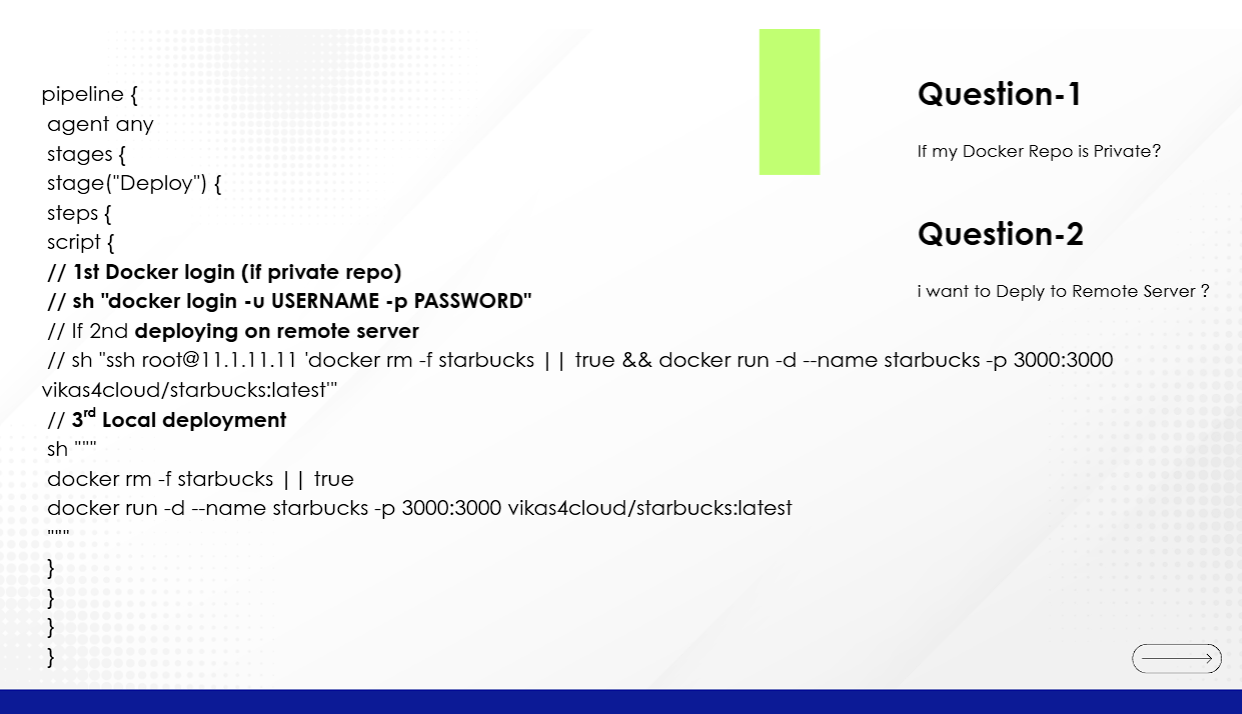

pipeline {
agent any
stages {
stage("Deploy") {
steps {
script {
// 1. Docker Login for Private Repositories
// sh "docker login -u $DOCKER_USER -p $DOCKER_PASS"
// 2. Deploy to Remote Target Server via SSH
// sh "ssh root@11.1.11.11 'docker rm -f starbucks || true && docker run -d --name starbucks -p 3000:3000 vikas4cloud/starbucks:latest'"
// 3. Local Target Deployment
sh '''
docker rm -f starbucks || true
docker run -d --name starbucks -p 3000:3000 vikas4cloud/starbucks:latest
'''
}
}
}
}
}

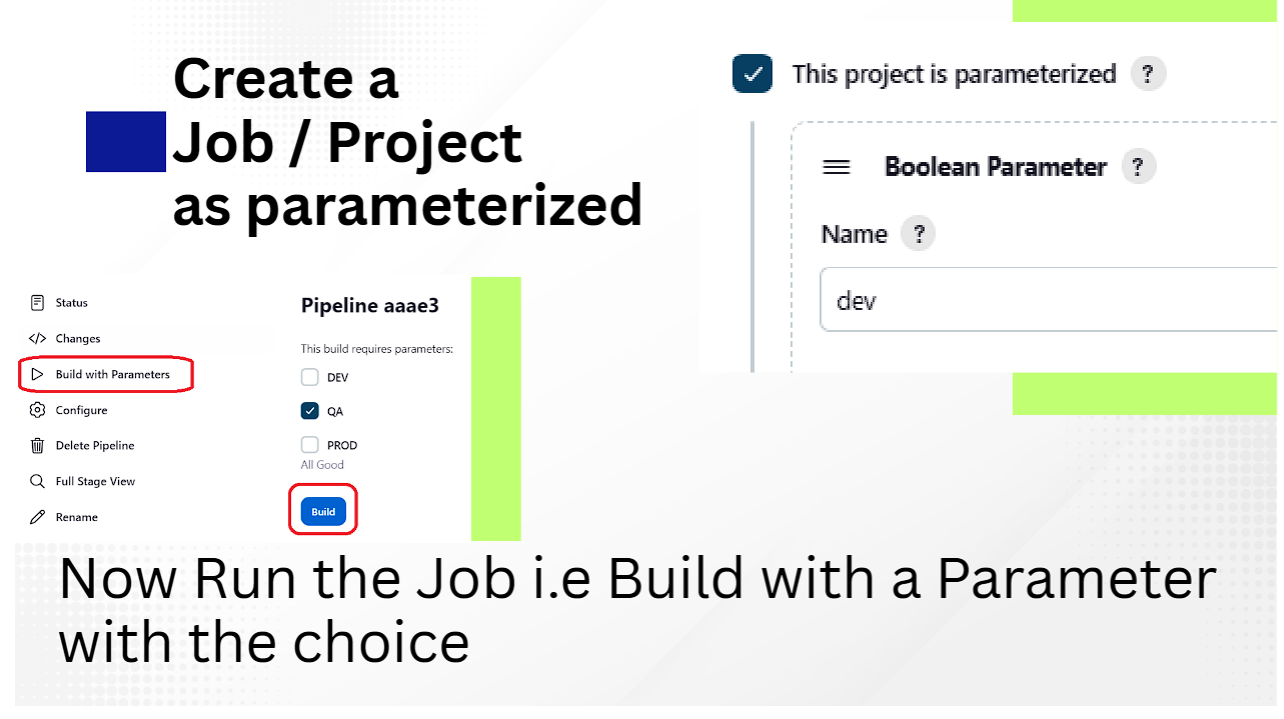

Use Parameterized Jenkins Pipelines. Enable "This project is parameterized" in job configuration, add a Choice or Boolean Parameter (e.g. DEV, QA, PROD), and execute via Build with Parameters.

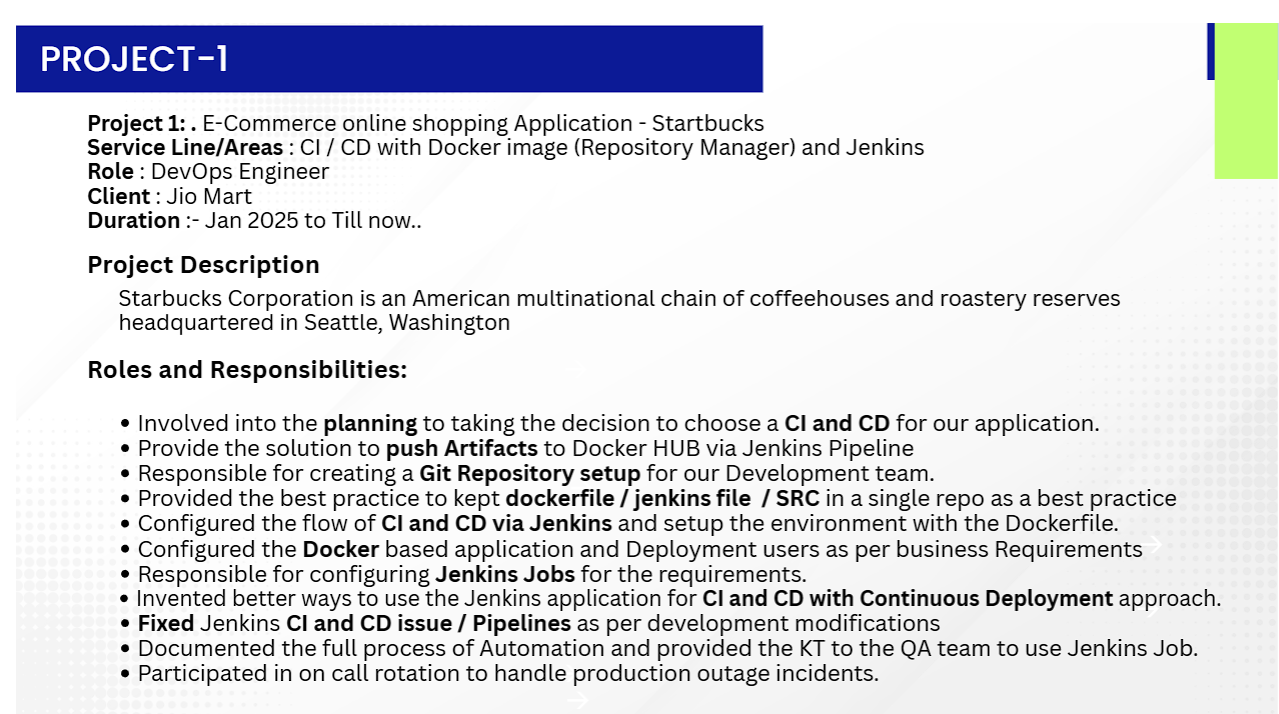

You can add these high-impact bullet points to your resume based on this project:
libatomic.so.1) and configured Linux security group rules for application isolation.
